THE DRIP IRRIGATION SYSTEM THAT ROCKED MY WORLD.

I know. Enough with the garden stuff, Karen.  But in the summer that’s where my life is, outside in the garden with the bugs, snakes, birds and what I firmly believe to be a village of organized and complex problem solving slugs.

Once the cooler weather arrives I’ll be back inside doing some painting (my dining room brick wall … gasp,) rearranging and maybe some slip covering.  Maybe.

But for now, I’m firmly entrenched in the pestfest of my garden.

One of the more relaxing chores in the world of gardening is sitting yourself down in a lawn chair, hose in hand, sending a gentle sprinkling of water onto your vegetable beds.

Hand watering is almost meditative.  Unless you have twelve, 16 foot beds, a self diagnosed hyperactivity disorder, at least one body to feed and bathe every day, soil that drains like a gamblers bank account and a garden hose you suspect of being made out of a weirdly pliable cast iron.

THEN it just sucks.

So this spring I looked into installing a drip system.

And then I got overwhelmed and confused and felt like I might stroke out so  I continued with hand watering.

It turns out drip systems aren’t all that difficult.  They just seeeeem difficult to the uninitiated.  I ended up emailing the company I buy my row cover from and asked them to help me. They sell all the stuff you need for drip irrigation including entire kits with everything you need. I just wasn’t sure what size kit I needed or if I needed two of them or if I should just do it without a kit.

So I took a shot, randomly sent them my garden plan and asked for help.

Within a few days someone from the company sent me back a mock up of my garden with a drip layout, a list of everything I needed to do it and the price it would be ($324 for my entire 40′ X 40′ plot.)

It took 3 days to install (working 2-3 hours each time) and I love it with all of my heart.  I big heart love it.  I lasagna love it.

What’s to love you ask?  Here are a few things:

Why I Love Drip Irrigation
  • No waste of water.  It goes directly in the ground where you want it, not onto paths, not onto the dense layer of plant leaves and not into the air.
  • You can water and work in your garden at the same time.  Try doing that while dodging a sprinkler.
  • Every single inch of your garden is watered.  There are no dry or missed spots.
  • Because the water is dripped so slowly it’s fully absorbed deeply into the soil with no run off.
  • You can set it to a timer and forget about it.

So, just like LED lighting, Drip Irrigation can seem a bit YIKES, but once it’s explained by someone as stupid as you are, it all makes sense.  You just need an equally confused person to explain it to you.

I am just that person.

Here’s a video of the entire system after I’ve installed it so you can make sense of the layout and what it all looks like.





HOW TO INSTALL DRIP IRRIGATION IN A HOME GARDEN



(There are 2 types of hoses with drip irrigation: the drip hose, which has holes in it for dripping water in the beds and the supply hose, the hose that feeds the drip hose)

  1.  Assemble your filter and pressure reducer. (The pressure reducer ensures you always have constant water pressure at 12 psi.)

installing drip irrigation filter

These are what the pieces look like unassembled but laid out in order.

installing a drip irrigation water filter

Tape your pipe ends with plumbing tape (provided) and screw everything together.  If you’re ordering from the place I ordered from (Dubois Agrinovation) you’ll get the exact same parts that go together in the exact same order, the exact same way).

    2. Attach your assembled filter and pressure reducer to your garden hose.  Make sure it is OFF.  Then attach the end of your supply hose to the filter.

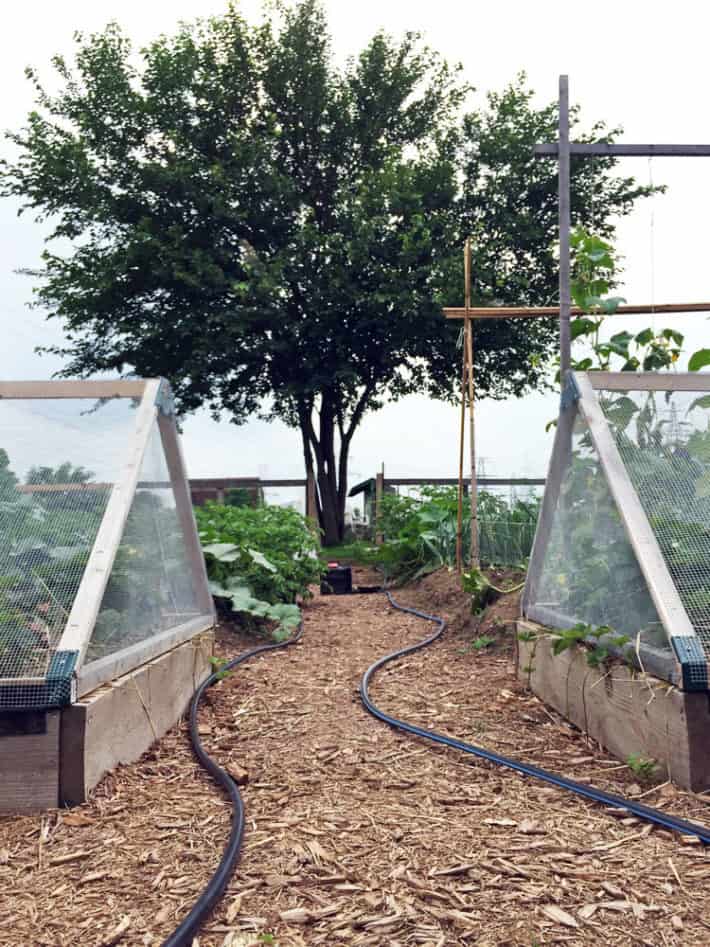

3.  Run your supply hose to where you want your drip hoses to run.  In my case I needed to run 2 supply hoses, one to feed the left side of my garden and one to feed the right side.  To run the hose to where you need it you may need to cut the supply hose and attach elbows or tees, like you see below.

4.  Run your supply hose the full length of your garden and attach shut off valves.



Drip irrigation tubing

5. Cut your drip tape to length and lay them on your garden beds with the holes facing UP.   You should have one drip tape per row of plants or approximately 1 drip tape every 12″.

*(laying drip tape would be much easier in the spring when the garden isn’t full of plants)

installing drip irrigation in vegetable garden



6.  Lay out all of your on/off valves where your drip tape meets your supply line.

*TIP:  If you’re working alone, lay a rock on one end of the drip tape while you run it to keep it in place.

Installing drip irrigation in a raised bed vegetable garden

If you’re working in a garden with plants already, just lay the rock on one end of your drip tape then gently pull the plants up and lay the tape underneath.  Then pull the drip line tight and straight.

7. Attach all of your drip tape on off valves.  For me there were 32 of them to fit.  Here’s how to attach the drip lines to the supply line.





karen bertelsen gardening

8.  Before you put the end caps on your drip line you have to purge the system so any dirt that got into the lines gets flushed out.  Close the valves at the end of your supply line, make sure all the drip line valves are open and turn the water on.  This is your first test run.  Wooooo!

installing drip irrigation in home garden

9.  Once you’ve run the lines long enough for any soil to have been flushed out, turn the water off and attach the end caps to all of your drip lines.

10.  Smile.  Your system is now fully installed.

installing drip irrigation in home garden

The drip system delivers water slowly through holes in the top of the drip tape.  The water will spread out and down.

Here’s a cross section of the soil after 1/2 an hour of the drip system running.  You can see how far down and wide the water has travelled.

depth of drip irrigation moisture



Still confused?  Here it is in a nutshell.

  1. Assemble filter & pressure reducer.
  2. Attach garden hose and drip system supply hose.
  3. Run supply hose along where you want water.
  4. Attach drip tape off of supply hose.
  5. Purge system.
  6. Do a little dance, make a little love.

If you have a normal sized garden and only need 10 rows of drip tape, a kit with everything you need will cost you $155.

But there are kit sizes for every garden if you take a look here.

There’s only a month or so more of this gardening business left in my part of the world.  Once the end of September hits I’ll be thinking about ordering firewood, finishing up some canning and practicing some brain exercises so that next year … I’ll be better prepared to outsmart a slug.



Update:

**to those who are asking in the comment section, the system runs for 1/2 hour – 2 hours depending on your soil.

***the system can stay put throughout the entire winter.  Just blow some of the water out of the lines so they don’t freeze and break the tubes.  The only thing you need to take apart and bring inside is the filter and pressure gauge.
